Leoch XP series, are AGM Valve-Regulated Lead-Acid front terminal batteries that have been optimized for UPS applications. Engineered using advanced TTP technologies, they offer ultra-high-power discharge rates at 15mins and high consistency for multiple string applications, XP batteries offer 12 year design life.
Features
Long design life classified according to Eurobat.
Case sizing designs for increased replacement compatibility
Increased consistency by utilizing low tolerance manufacturing techniques
Unique one-way vent valve design to minimize water loss and increase safety
Reduced grid corrosion and elongated battery life, due to advanced lead tin calcium alloy used
ABS case UL94-HB (UL94-V0 Optional) is used for increased container strength
Specification
Model | Nominal Voltage (V) | Rated Power Discharge 15min @ 1.67V/cell (W) | Rated Capacity 20Hr @ 1.80V/cell (AH) | Rated Capacity 10Hr @ 1.80V/cell (AH) | Approx. Dimensions (mm) | Approx. Weight (kg) | Terminal Type | ||||||||
L | W | H | TH | ||||||||||||
mm | in | mm | in | mm | in | mm | in | kg | lbs | ||||||
XP12-100 | 12 | 92.8 | 27 | 26.1 | 164.00 | 6.46 | 125.00 | 4.92 | 172.00 | 6.77 | 175.00 | 6.89 | 7.90 | 17.42 | T12(M5) |
XP12-150 | 12 | 150 | 35 | 33.5 | 195.00 | 7.68 | 130.00 | 5.12 | 164.00 | 6.46 | 167.00 | 6.57 | 10.20 | 22.49 | T6-I(M6) |
XP12-210 | 12 | 240.8 | 55 | 52.6 | 229.00 | 9.02 | 138.00 | 5.43 | 200.00 | 7.87 | 203.00 | 7.99 | 17.70 | 39.02 | T6(M6) |
XP12-300 | 12 | 324.6 | 82 | 78.6 | 260.00 | 10.24 | 168.00 | 6.61 | 208.00 | 8.19 | 211.00 | 8.31 | 24.20 | 53.35 | T6(M6) |
XP12-350 | 12 | 374 | 95 | 90.7 | 306.00 | 12.05 | 168.00 | 6.61 | 208.00 | 8.19 | 211.00 | 8.31 | 28.20 | 62.17 | T6(M6) |
XP12-400 | 12 | 402 | 101.6 | 96 | 325.50 | 12.81 | 170.00 | 6.69 | 213.00 | 8.39 | 216.00 | 8.50 | 31.60 | 69.67 | T8(M6) |
XP12-490 | 12 | 505.6 | 142 | 136 | 335.00 | 13.19 | 172.00 | 6.77 | 275.00 | 10.83 | 278.00 | 10.94 | 42.60 | 93.92 | T8(M6) |
XP12-540 | 12 | 540.1 | 155 | 147 | 335.00 | 13.19 | 172.00 | 6.77 | 275.00 | 10.83 | 278.00 | 10.94 | 42.60 | 93.92 | T8(M6) |
XP12-740 | 12 | 740 | 210 | 522.00 | 20.55 | 240.00 | 9.45 | 218.00 | 8.58 | 224.00 | 8.82 | 64.50 | 142.20 | T11(M8) | |
XP12-810 | 12 | 810 | 230 | 522.00 | 20.55 | 268.00 | 10.55 | 220.00 | 8.66 | 226.00 | 8.90 | 73.30 | 161.60 | T11(M8) |

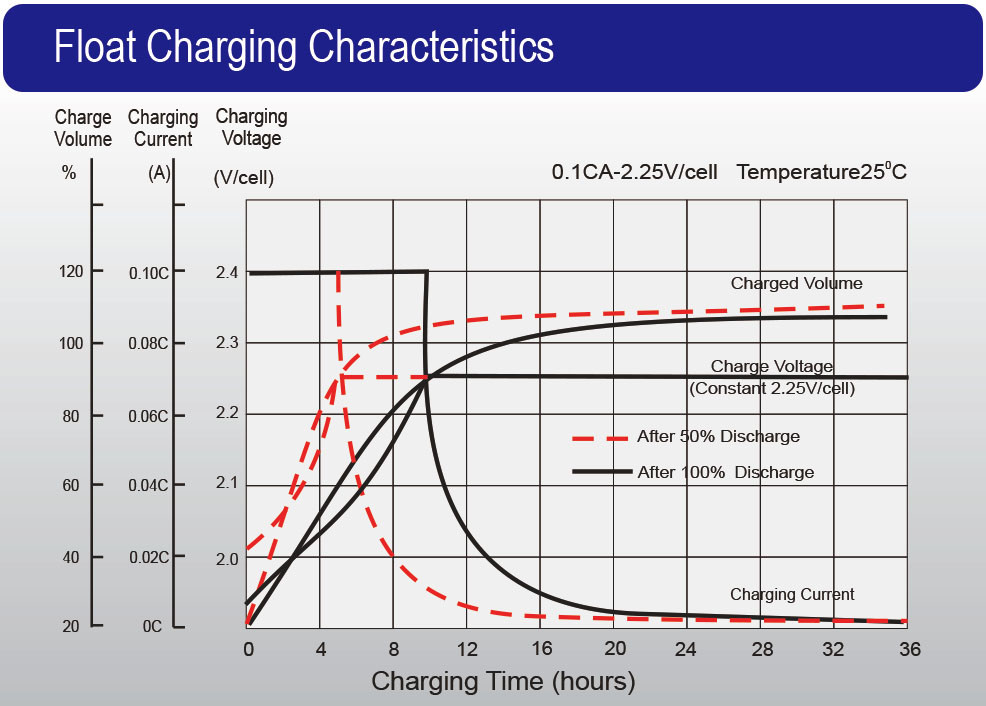

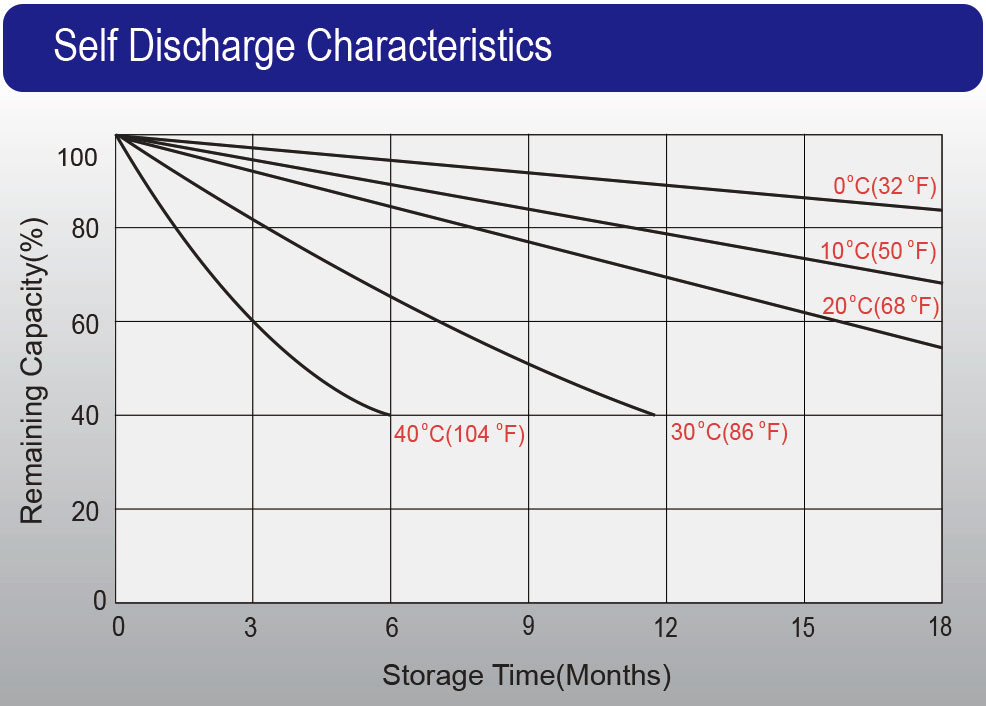

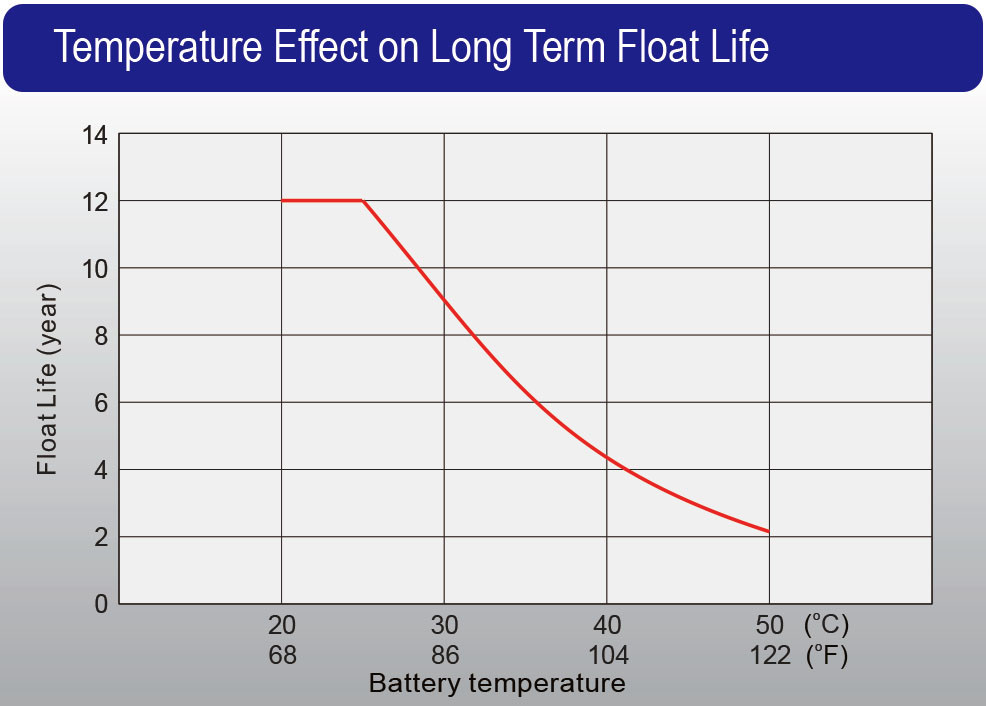

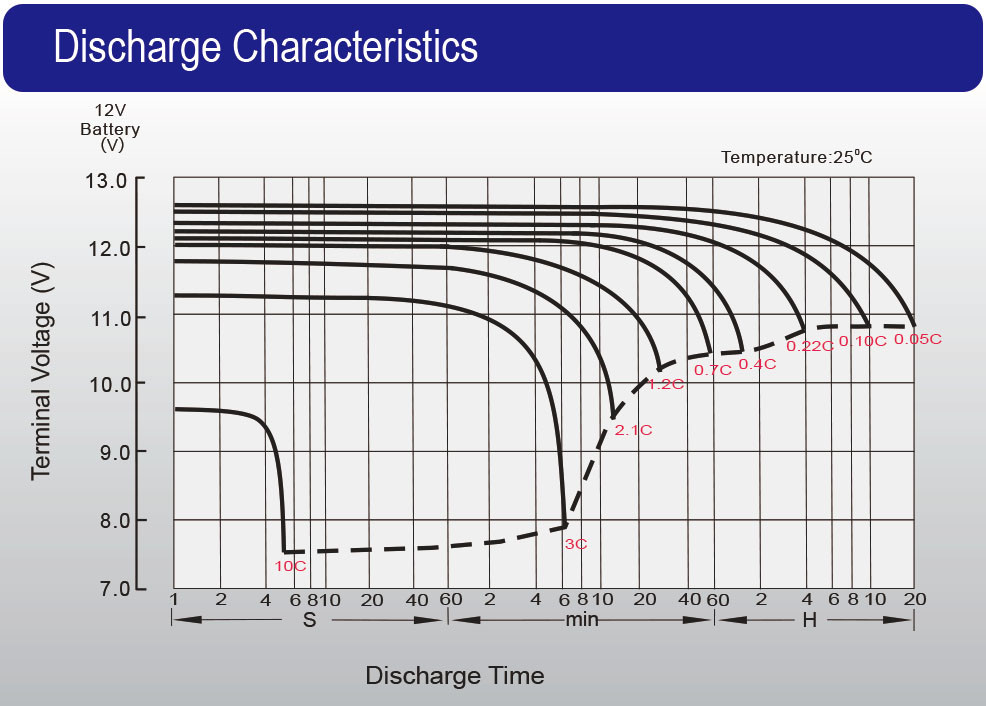

Characteristics
